Noise Assessment Survey: 7 Essential Things You Need to Know Before Planning Submission

A noise assessment survey is usually needed when a proposed development is either likely to be affected by existing noise, or likely to introduce new noise that could affect nearby homes, schools, care homes or other sensitive receptors.

In practice, this often applies to new residential development near roads, railways, commercial premises or industrial uses. It can also apply to commercial schemes involving mechanical plant, deliveries, extraction systems, gyms, workshops, restaurants, bars or other operational noise sources.

The survey itself is only one part of the process. The important part is how the measured data is interpreted. A useful assessment needs to explain what the noise climate is like, which standards apply, whether the survey period is representative, what the results mean for the proposed development, and what mitigation is needed.

This guide explains when a noise assessment survey may be required, what councils usually expect, how the process works, and the common issues that can delay planning applications or condition discharge.

What Is a Noise Assessment Survey?

A noise assessment survey combines two related stages: measurement and assessment.

The survey stage involves measuring existing sound levels at a site or near surrounding receptors. This may include daytime noise levels, night-time noise levels, maximum noise events, background sound levels, attended observations and weather conditions.

The assessment stage explains what those measurements mean. It compares the measured or predicted levels against the relevant standards, guidance and planning requirements. It also identifies whether mitigation is needed and how that mitigation should be built into the design.

A noise assessment survey may be used to answer questions such as:

• Are proposed homes suitable in this location?
• Will internal noise levels be acceptable?
• Is acoustic glazing or alternative ventilation required?
• Will gardens or external amenity areas be affected by noise?
• Could proposed plant, extract systems or deliveries affect neighbouring residents?
• Can a planning condition relating to noise be discharged?
• Is construction noise likely to need specific control measures?

A good assessment should not simply present charts and tables. It should give the design team, planning consultant, Environmental Health Officer and client a clear route to compliance.

---

Noise Survey vs Noise Assessment: What Is the Difference?

The terms are often used together, but they do not mean exactly the same thing.

A noise survey is the measurement exercise. This is where sound level meters are used to record existing noise levels at representative positions.

A noise assessment is the technical interpretation of those results. It considers the relevant standards, applies professional judgement, predicts future conditions where needed, and sets out any mitigation.

A simple way to separate them is:

A noise survey measures the acoustic environment.
A noise assessment explains whether that environment is acceptable for the proposed development.

For example, if new flats are proposed next to a busy road, the survey may measure the daytime and night-time noise climate. The assessment then considers whether bedrooms, living rooms and external amenity areas can achieve appropriate noise levels with the proposed layout, glazing and ventilation strategy.

If a restaurant proposes new kitchen extract plant near existing flats, the survey may establish the background sound level at the nearest receptor. The assessment then determines whether the proposed plant noise level is likely to be acceptable, whether acoustic corrections apply, and whether attenuation or operational controls are needed.

---

When Is a Noise Assessment Survey Required?

A noise assessment survey may be required where noise is likely to be a material planning consideration. This normally falls into two broad categories.

The first is where the development is noise-sensitive. This includes new homes, care homes, hotels, schools, nurseries, hospitals and other uses where people may be affected by existing environmental noise.

The second is where the development is noise-generating. This includes schemes that may introduce plant noise, servicing noise, commercial activity, entertainment noise, construction noise or vehicle movements close to existing sensitive receptors.

Common examples include:

• new houses or flats near busy roads, railways or industrial estates;
• residential conversions above or next to shops, restaurants, bars or gyms;
• mixed-use schemes with commercial uses below residential units;
• air source heat pumps, condensers, chillers, fans or kitchen extract systems;
• loading bays, delivery yards, car parks or service areas;
• new commercial, industrial or leisure uses close to homes;
• construction sites near occupied buildings;
• planning conditions requiring details of noise mitigation before occupation.

Not every project requires long-term unattended monitoring. Some low-risk schemes can be reviewed using a proportionate desktop assessment or targeted calculations. However, where the risk is higher, measured baseline data is usually the most defensible starting point.

---

What Councils Usually Expect from a Noise Assessment Survey

A council or Environmental Health Officer will usually want to see that the noise issue has been properly understood, measured where necessary, assessed using the correct method, and addressed through practical mitigation.

A planning-ready noise assessment survey will usually include:

• a description of the site and proposed development;
• identification of existing noise sources;
• identification of nearby noise-sensitive receptors;
• details of the survey equipment, positions and monitoring periods;
• calibration details;
• weather conditions and survey observations;
• measured noise levels using appropriate acoustic indices;
• assessment against the relevant standards or guidance;
• prediction calculations where required;
• mitigation recommendations; and
• a clear conclusion on whether the development is acceptable in noise terms.

The noise assessment survey report should be specific to the project. Generic statements such as “suitable glazing should be installed” or “plant noise should be controlled” are rarely enough. The mitigation needs to be measurable, buildable and capable of being conditioned. It is also common for the council to require post-completion sound testing to ensure that any mitigation measures are effective.

For example, if acoustic glazing is required, the report should identify the required acoustic performance and where it applies. If plant noise mitigation is needed, the report should explain the proposed limit, receptor position, operating assumptions and any attenuation requirements.

---

Which Standards and Guidance Apply?

The correct methodology depends on the source of noise and the type of development.

BS 8233:2014

BS 8233:2014 is commonly used for residential developments affected by environmental noise. It provides guidance on internal noise levels for rooms such as bedrooms and living rooms, as well as external amenity areas.

It is often relevant for proposed dwellings near roads, railways, commercial premises or other environmental noise sources.

ProPG: Planning & Noise

ProPG is normally used for new residential development exposed to transport noise. It encourages good acoustic design from the outset, rather than relying only on upgraded glazing at the end of the design process.

This means considering layout, orientation, building form, internal room arrangement and the provision of a quieter side where practicable.

BS 4142:2014+A1:2019

BS 4142 is commonly used for industrial and commercial sound affecting residential receptors. This can include external plant, kitchen extract systems, loading activity and some operational commercial noise.

The assessment considers the specific sound level, background sound level, acoustic character and context.

BS 5228

BS 5228 is used for construction and demolition noise and vibration. It is often relevant where construction activity is likely to affect nearby occupied buildings or where a Construction Environmental Management Plan is required.

Local Planning Guidance

Some councils publish their own noise guidance or validation requirements, such as The London Plan. These may specify when a noise assessment is required, what information should be submitted, and what standards or criteria the council expects to see.

The key point is that not every standard belongs in every report. The assessment should be scoped around the actual noise issue, not assembled from a generic list of guidance documents.

---

Common Noise Indices Explained

Noise assessment reports often use technical acoustic terms. The most common are:

LAeq,T
The average sound level over a defined time period. This is commonly used to assess overall environmental noise exposure.

LAFmax
The maximum fast time-weighted sound level. This is often relevant at night, where individual noise events may affect sleep.

LA90,T
The sound level exceeded for 90% of the measurement period. This is commonly used to describe the background sound level, particularly in BS 4142 assessments.

Rw
A laboratory rating for the airborne sound insulation performance of a building element, such as glazing.

DnT,w
A field-measured sound insulation rating, commonly used for separating walls, floors or completed buildings.

NOAEL, LOAEL and SOAEL
Planning policy terms used to describe levels of noise effect, ranging from no observed adverse effect through to significant observed adverse effect.

The report should explain these terms where they matter. A technically correct assessment is useful, but it also needs to be understandable to the planning team and decision-maker.

---

How a Noise Assessment Survey Is Carried Out

1. Initial Site Review

The first step is to understand the site, the proposed development and the likely noise risks. This normally includes reviewing drawings, aerial imagery, planning comments, nearby receptors and potential noise sources.

At this stage, the consultant should decide whether the scheme needs a baseline noise survey, plant noise assessment, façade calculation, construction noise assessment, noise modelling or a combination of these.

2. Survey Scope

The survey scope depends on the project.

For residential development, monitoring may need to cover daytime and night-time periods. For plant noise assessments, the most important period may be the quietest background period when the plant is likely to operate. For commercial or entertainment uses, evening and night-time periods may be critical.

The survey should be long enough and positioned carefully enough to represent the noise climate relevant to the assessment.

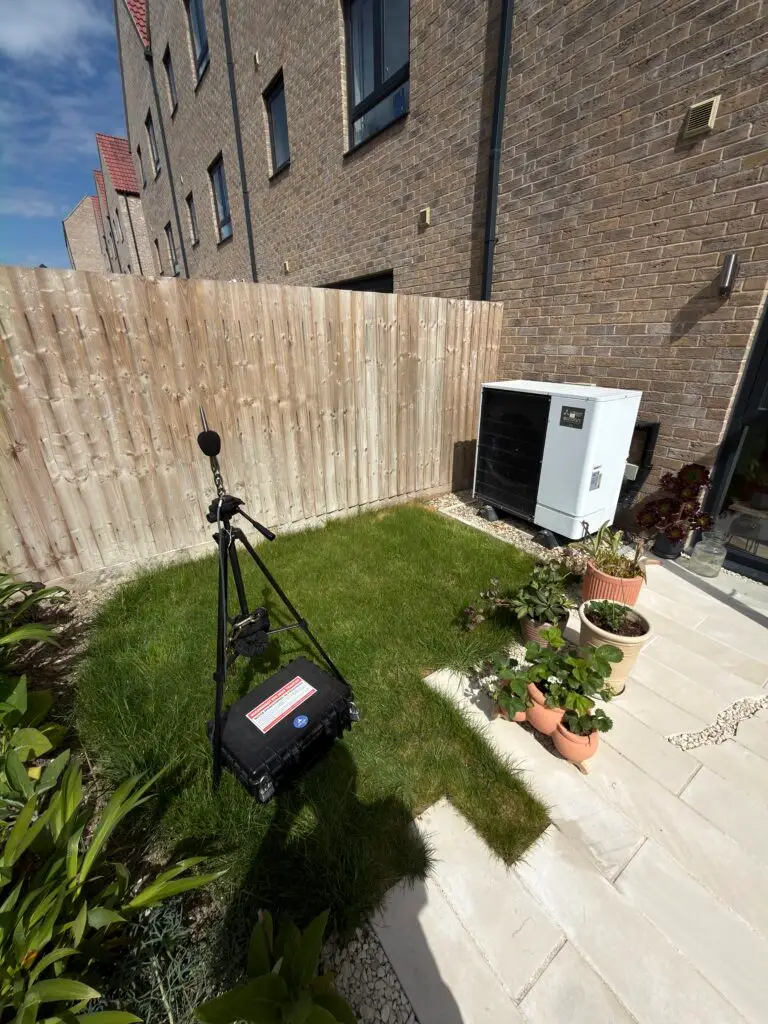

3. Baseline Noise Monitoring

Sound level meters are installed at representative positions. These may be free-field positions, façade positions or proxy locations where direct access to the most relevant receptor is not possible.

The equipment should be suitable for environmental noise measurement, and calibration checks should be carried out before and after the survey.

Weather conditions also matter. Strong wind, rain or unusual site activity can make parts of the data unsuitable, so these periods should be reviewed and excluded where necessary. Click here to find out when a noise survey is typically required.

4. Data Analysis

The measured data is processed into the required acoustic indices. This may include LAeq,T, LAFmax, LA90,T and octave-band levels.

The data should be reviewed carefully rather than copied straight from the sound level meter. Unusual events, poor weather, tampering, atypical activity or non-representative periods can all affect the results.

5. Assessment

The results are assessed against the relevant standards and guidance. Depending on the project, this may involve:

• internal noise level calculations;
• façade sound insulation calculations;
• external amenity noise assessment;
• BS 4142 rating level assessment;
• plant noise limit setting;
• construction noise prediction;
• barrier or screening calculations;
• noise mapping;
• mitigation design.

This is the point where consultant judgement matters. Two sites with similar measured noise levels can require different recommendations depending on layout, receptor sensitivity, context, ventilation strategy and the proposed use.

6. Mitigation Design

Where mitigation is required, the report should identify the most practical solution.

This may include:

• orientating sensitive rooms away from dominant noise sources;
• using the building form to screen gardens or courtyards;
• specifying acoustic glazing;
• providing alternative ventilation;
• relocating or enclosing plant;
• adding attenuators or acoustic louvres;
• restricting operating hours;
• controlling deliveries;
• using temporary construction noise barriers;
• setting commissioning or post-completion testing requirements.

The best mitigation is usually designed in early. Leaving noise until the end of the design process often results in more expensive and less elegant solutions.

---

Noise Assessment Surveys for Residential Development

For residential schemes, the most common concern is whether future occupants will have acceptable internal and external noise levels.

This usually involves considering:

• daytime noise levels in living rooms;
• night-time noise levels in bedrooms;
• maximum noise events at night;
• external amenity areas such as gardens, balconies and communal spaces;
• façade sound insulation;
• ventilation strategy;
• overheating strategy;
• whether a quieter side can be provided.

Where a site is close to a busy road, railway or other significant noise source, the noise assessment survey may influence the layout. For example, bedrooms may be placed on quieter elevations, non-habitable rooms may be used to shield sensitive spaces, and external amenity areas may be located behind the building mass.

A common mistake is to treat glazing as the whole solution. Glazing performance is important, but the acoustic design also needs to consider frames, vents, façade penetrations, room use, ventilation and overheating.

---

Noise Assessment Surveys for Plant and Commercial Noise

For plant, commercial and industrial noise, the focus is usually on the impact at nearby receptors.

Accordingly, a noise assessment survey can include:

• air source heat pumps;
• condensers;
• chillers;
• fans;
• kitchen extract systems;
• generators;
• loading bays;
• service yards;
• workshops;
• gyms;
• external seating areas;
• entertainment uses.

These assessments often require background sound level measurements, particularly during the quietest periods when the proposed equipment or activity may operate.

For example, plant operating at night may need to be assessed against night-time background sound levels, not just daytime conditions. If the plant has tonal, intermittent or impulsive characteristics, this may also need to be considered.

Good mitigation usually starts with quieter equipment selection and sensible positioning. Acoustic enclosures, attenuators and barriers can help, but they are usually easier to design when the plant schedule is known early.

---

Noise Assessment Surveys for Construction

Construction noise assessments are usually required where works may affect nearby residents, care homes, schools, hospitals, offices or other sensitive uses.

A construction noise assessment may include:

• identification of construction phases;
• likely plant and equipment;
• predicted noise levels at nearby receptors;
• proposed working hours;
• temporary screening or barriers;
• best practicable means;
• communication procedures;
• complaint response procedures;
• monitoring requirements.

For larger schemes, this information may form part of a Construction Environmental Management Plan.

The aim is not usually to make construction inaudible. The aim is to understand the likely effects, control noise as far as reasonably practicable, and provide a clear management route for the contractor and local authority.

---

How Long Does a Noise Assessment Survey Take?

Timescales depend on the project, access arrangements, weather and the complexity of the assessment.

As a broad guide, simple plant noise reviews may be completed quickly where suitable manufacturer data is available. Residential schemes often require at least one full daytime and night-time period of monitoring, with longer surveys used where the noise climate varies significantly.

A typical process may include:

• initial scope review;
• survey planning and access arrangements;
• baseline noise monitoring;
• data processing;
• assessment calculations;
• mitigation design;
• reporting;
• client or design team review;
• planning submission or condition discharge.

The fastest route is usually to provide the consultant with the site address, red-line boundary, proposed drawings, planning reference, council comments and any plant or operational details at the start.

---

What Information Is Needed for a Quote?

To scope a noise assessment survey properly, the following information is usually helpful:

• site address;
• red-line boundary;
• proposed plans and elevations;
• planning reference, if available;
• council or Environmental Health comments;
• description of the proposed use;
• number of dwellings or units;
• proposed operating hours, where relevant;
• plant schedule or equipment details;
• known nearby noise sources;
• required timescale.

If the project is at an early stage, indicative drawings are normally enough to provide initial advice. The scope can then be refined as the design develops. Click here if you would like to discuss your project or request a quotation.

---

Common Mistakes That Cause Delays

Leaving Noise Too Late

Noise is often easiest to resolve when it is considered early. Once the layout, façade design, ventilation strategy or plant selection has already been fixed, the available mitigation options can become more limited.

Using the Wrong Assessment Method

Different noise issues require different methods. A road traffic noise assessment for new homes is not the same as a BS 4142 assessment for plant noise.

Surveying the Wrong Period

A survey should represent the period that matters. For residential schemes, this may include night-time conditions. For plant noise, it may be the quietest background period during proposed operation. For entertainment or deliveries, evening and weekend periods may be important.

Relying on Weak Plant Data

Not all manufacturer noise data is suitable for environmental assessment. Sound pressure levels, sound power levels, distance corrections, octave-band data and operating conditions need to be understood properly.

Giving Vague Mitigation

A report should not simply say that “suitable acoustic glazing” or “appropriate attenuation” is required. The recommendations should be clear enough for the design team to implement and for the council to review.

Ignoring Ventilation

If closed windows are needed to achieve internal noise targets, the ventilation strategy must be considered. This does not mean windows are sealed shut or cannot be opened. It means the acoustic design should not rely on open windows for normal background ventilation where this would compromise internal noise levels.

---

Frequently Asked Questions

---
